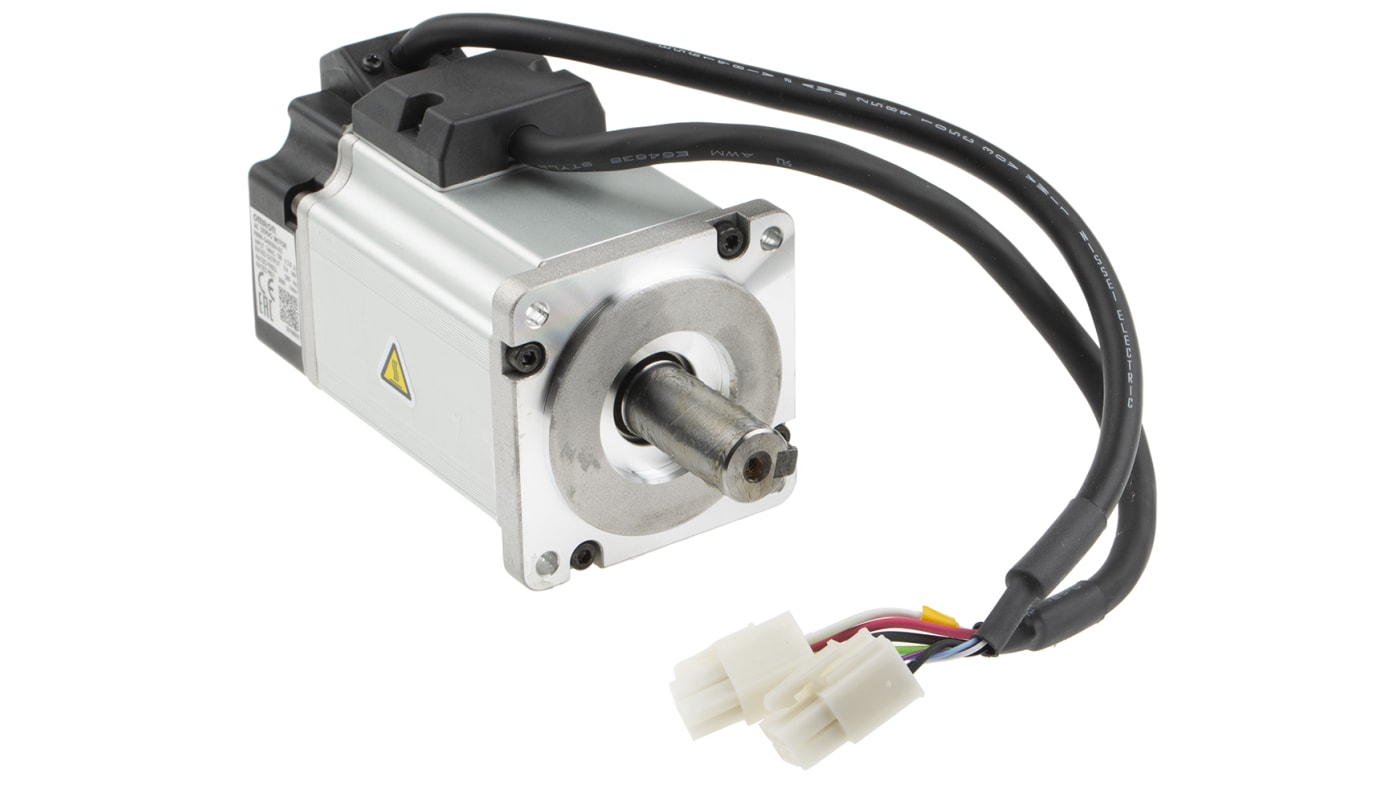

SmartStep 2 - G Series
Professional range of G series servo motors from Omron. This wide range of compact servo motors are designed to meet all application needs. When used with a SmartStep 2 drive, the G-series servo motors offer the simplicity and cost-effectiveness of a stepper. These servo motors have the added advantages of a servo system
Peak torque 300% for 3 secs
Servo motors supported by SmartStep 2, G-Series and Accurax G5 servo drives
IP65 Rating
No motor settings required
Omron Servo Motors & Drives
| 屬性 |
值 |
| Maximum Output Torque |
1.3 Nm |
| Supply Voltage |
200 V ac |
| Output Speed |
3000 rpm |
| Power Rating |
400 W |
| Shaft Diameter |
50mm |
| Length |
60mm |
| Width |
60mm |
| Depth |
128.5mm |
| Dimensions |
60 x 60 x 128.5 mm |
| Standards Met |
CE, CUL 22.2, IEC 60034-5, UL 1004 File No:E 179189 |
| Current Rating |
2.6 A |
| Series |
SMARTSTEP2
|
保固期限 :
發票 : 有
訂購後商品將在 14 天之內出貨(除了國定假日)
