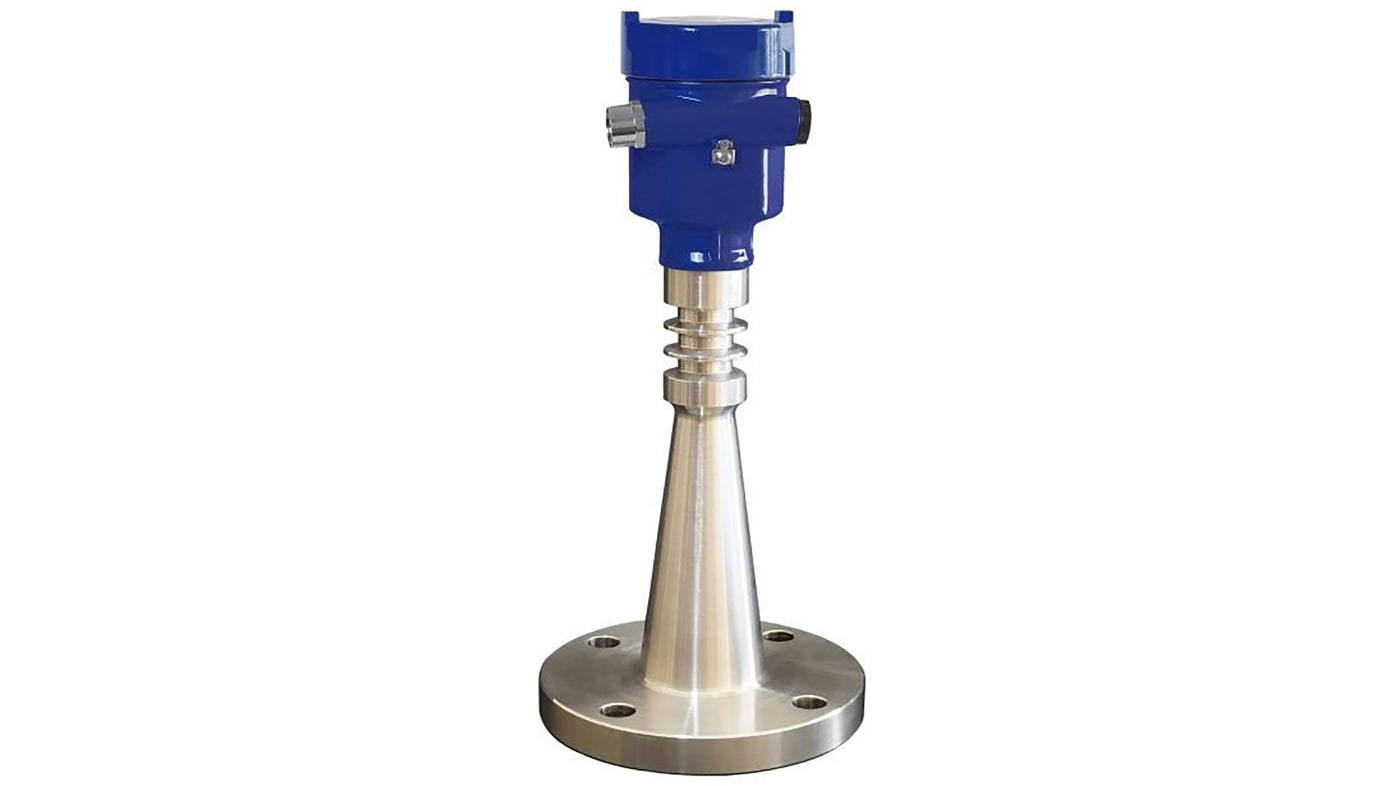

Flowline EchoPulse LR20/25/30 Pulse radar Level Transmitter
Robust & reliable 26GHz pulse radar level transmitter from Flowline provides the user with continuous level measurement up to 10m. EchoPulse LR series is designed for use within a comprehensive range of applications, including corrosive and agitation media
Features and Benefits
IP67 rated aluminium enclosure with polycarbonate window
316L stainless steel antenna & process mount
Fail-Safe diagnostic & outputs
Automatic temperature compensation provides accurate measurement
Simple & intuitive configuration via an integral push button display
Flowline Sensors
| 屬性 |
值 |
| Device Type |
Pulse Radar Level Transmitter |
| Mounting Type |
Flange Mount |
| Body Material |
Aluminium |
| Minimum Operating Temperature |
-40°C |
| Maximum Operating Temperature |
+150°C |
| Maximum DC Voltage |
26V |
| Maximum Current |
20 mA |
| Maximum Pressure |
5bar |
| Gasket Material |
Silicone |
| Series |
LR20 |
| Current Rating |
22.5 mA |
