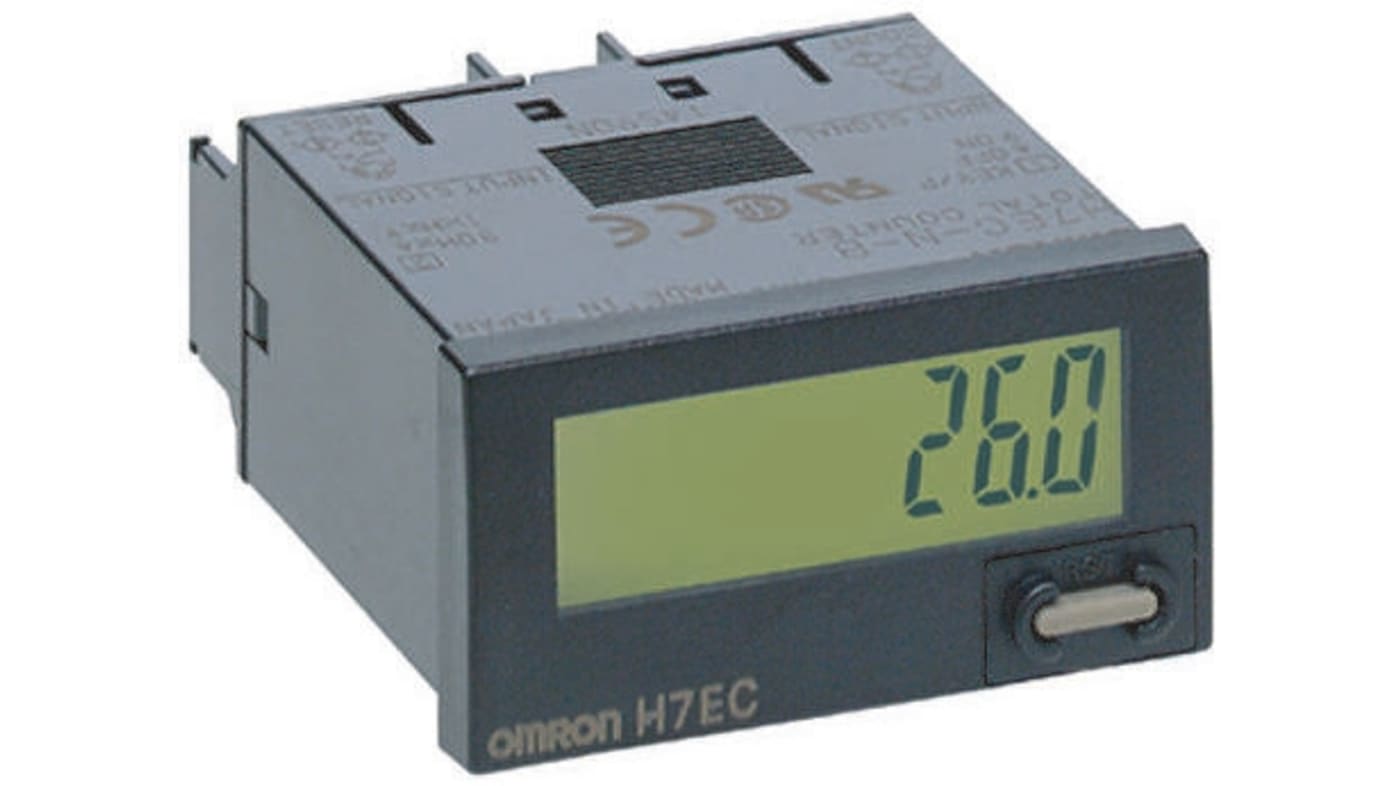

Omron 4 Digit, LCD, Counter, 1kHz
H7ER-NV
TWD
2,885元 / 個
100
產品概覽和技術數據資料表
H7E Series Tachometers/Counters (LCD)
Large totaliser display
Self powered by internal battery which can also be replaced
Key protected switch to prevent accidental reset switch operation
Dual operation mode
Short body of only 48.5mm
Finger touch protection
Omron Panel Mounting 24 x 48
All units are resettable. Panel cut out is 22 x 45 with the front fascia sealed to IP65 and has an operating temperature range of -10 to +55°C
| 屬性 | 值 |
|---|---|
| Count Mode | Seconds |
| Display Type | LCD |
| Input Type | Voltage |
| Connection Type | Screw |
| Reset Method | No Reset |
| Number of Digits | 4 |
| Mounting Type | Panel Mount |
| Digit Height | 8.6 mm |
| Maximum Count Frequency | 1kHz |
| Display Range | 0 → 9999 |
| Maximum Operating Temperature | +55°C |
| Weight | 60g |
| Series | H7ER |
| Minimum Operating Temperature | -10°C |
| Measurement Range | 0 → 9999 |
保固期限 :
發票 : 有
訂購後商品將在 14 天之內出貨(除了國定假日)
