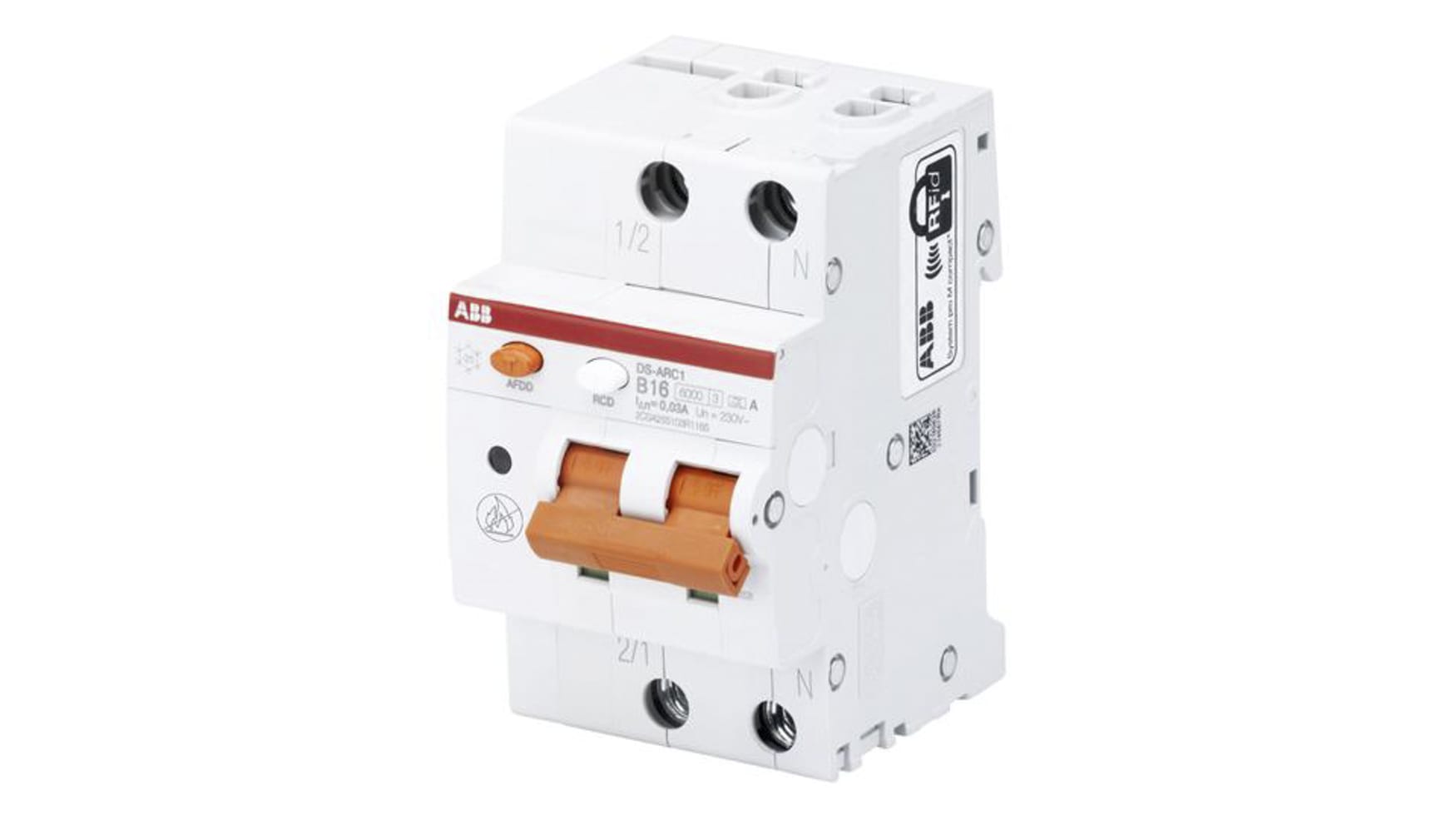

1P + N 10 kA 6 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA System Pro M Compact DS-ARC1
DS-ARC1 M B6 A30
TWD
9,517元 / 個
59
產品概覽和技術數據資料表
DS-ARC1 is the new 1P+N AFDD with an integrated residual current circuit breaker with overcurrent protection (RCBO) in 6 kA and 10 kA breaking capacity. In only three-module width, DS-ARC1 series offers a complete protection against arc faults overvoltages, overcurrent, earth fault currents.
Easy cross-wiring and easy installation with System pro M compact® busbars without any extra cables
Supply possible both from top and bottom side: double slots available for connection with cables and busbars
Family feeling in the System pro M compact® range
Compatible with System pro M compact® accessories
LED for an easy troubleshooting of the network
Two test button to verify the correct working conditions of AFDD and RCD
Continuous internal self-test
| 屬性 | 值 |
|---|---|
| Range | System Pro M Compact |
| Series | DS-ARC1 |
| Current Rating | 6 A |
| Trip Sensitivity | 30mA |
| Number of Poles | 1+N |
| Mounting Style | DIN Rail |
| Tripping Characteristics | Type B |
| Overall Length | 52.2mm |
| Overall Dimensions | 52.2 x 69 x 85mm |
| Earth Leakage Protection Type | A |
| Rated AC Voltage | 230 → 240 V |
| Breaking Capacity | 6 kA |
| Circuit Breaker Type | RCBO |
| Application | Easy Cross-Wiring and Easy Installation with System Pro M Compact Busbars without any Extra Cables, Supply Possible Both from Top and Bottom Side: Double Slots Available for Connection with Cables and Busbars |
| Reset Actuator Type | Toggle Switch |
| Overall Width | 69mm |
| Overall Depth | 85mm |
