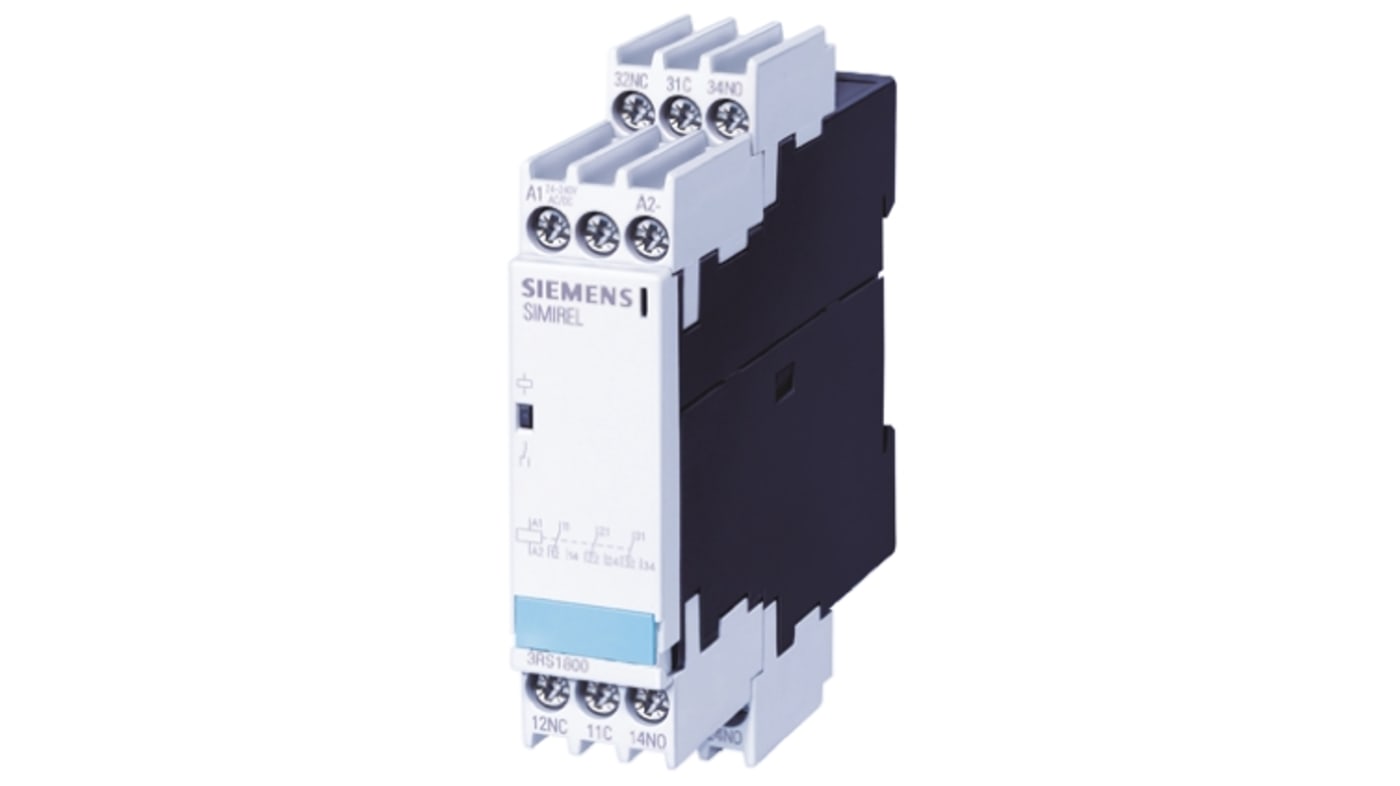

Coupling Relay With 2NO/2NC Contacts, 6 A, 240 V ac/dc Coil
3RS1800-1BW00
TWD
2,092元 / 個
78
產品概覽和技術數據資料表
3RS18 Relay Coupler
The 3RS18 coupling relay is a coupler in the proven 22.5mm industrial enclosure. This enclosure supports the same connection methods as for the 3RP15 timing relays. The relay coils are protected internally with noise suppression diodes.
Coupling relay in industry standard enclosure
2 changeover contacts
Wide voltage range 24-240Vac/dc
Screw terminals
| 屬性 | 值 |
|---|---|
| Coil Voltage | 240 V ac/dc |
| Switching Voltage | 24 → 250 V ac/dc |
| Switching Current | 6 A |
| Terminal Type | Screw |
| Contact Configuration | 2NO/2NC |
| Mounting Type | DIN Rail, Snap |
