新品

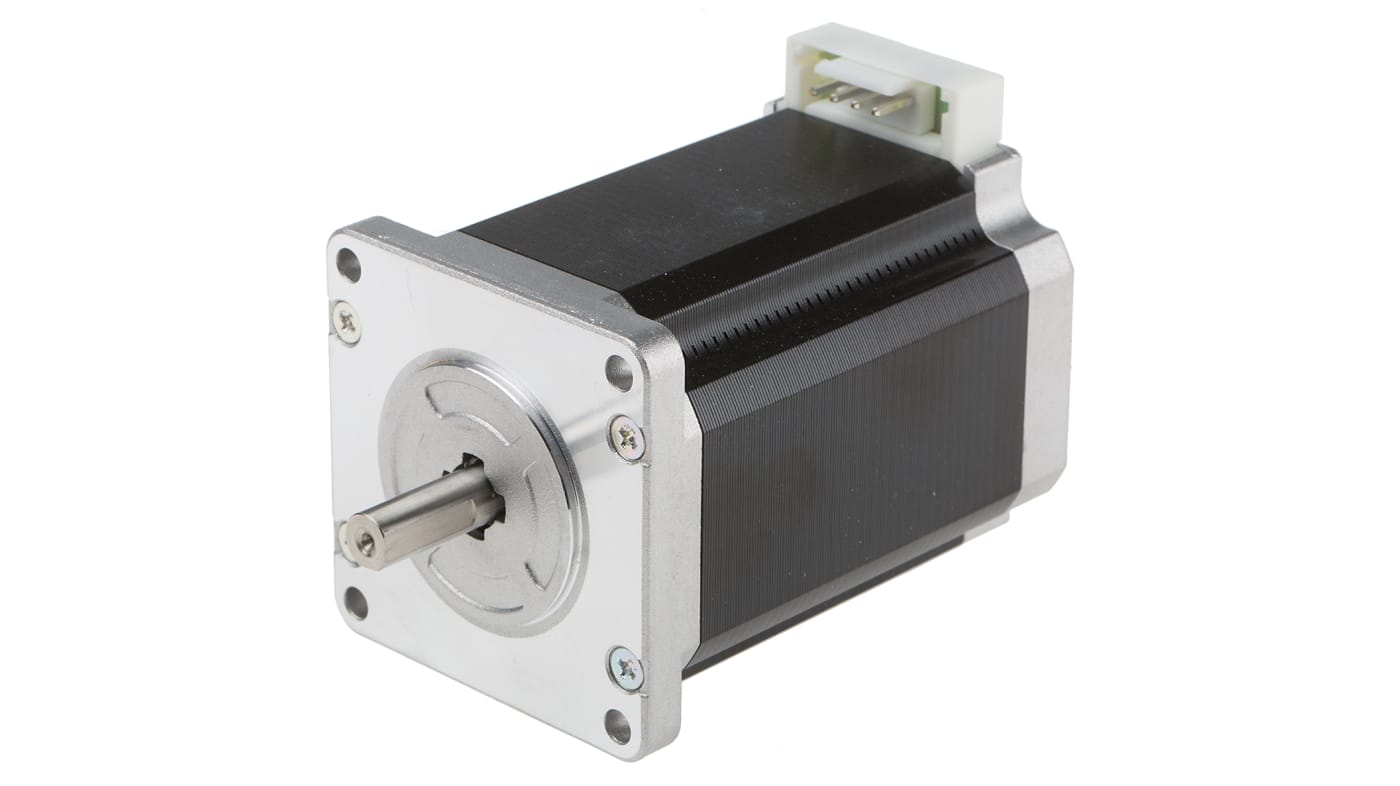

Sanyo Denki Bipolar Single Shaft Stepper Motor 1.8°, 2.7Nm, 24 V dc, 4 A, 6 Wires
103H7823-1740
TWD
3,829元 / 個
15
產品概覽和技術數據資料表
Sanyo Denki 103H7 Series Stepper Motor
Sany Denki range of 103H7 Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered.
Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available
Sanyo Denki Stepper Motor
| 屬性 | 值 |
|---|---|
| Step Angle | 1.8° |
| Holding Torque | 2.7Nm |
| Number Of Wires | 4 |
| Voltage Rating | 24 V dc |
| Frame Size | 60 x 60mm |
| Stepper Motor Type | Single Shaft |
| Shaft Diameter | 8mm |
| Current Rating | 4 A |
| Winding Arrangement | Bipolar |
| Shaft Length | 19.1mm |
| Depth | 87.3mm |
| Resistance Per Phase | 2.4Ω |
| Series | 103H7 |
| Standards Met | CE, CULus, RoHS Compliant, TUV |
保固期限 :
發票 : 有
訂購後商品將在 14 天之內出貨(除了國定假日)
